ip68 underwater light

Beam Angle: 30° as standard, 10°,60°,90°,120° Optional

Colour: R,Y,G,B,W,WW,RGB

Lifespan: 50,000hrs, L70@ 25℃

Control method: Single color, Auto RGB color change, RGB 4 wires color change (With remote), DMX512 control

Installation method: Disc Type, U Shape Bracket, Optional

Material: 304 stainless steel, High light transminssion tempered glass,Anti-aging silicone sealing ring

Cable: Special underwater waterproof cable 1 meter

Temperature: Operating temperature  -40℃ -- +45℃

                      Storage temperature -40℃ -- +70℃

Certification: CE,RoHs,ISO9001,IP68

Waterproof level: IP68

Electric Parameters			Physical Parameter

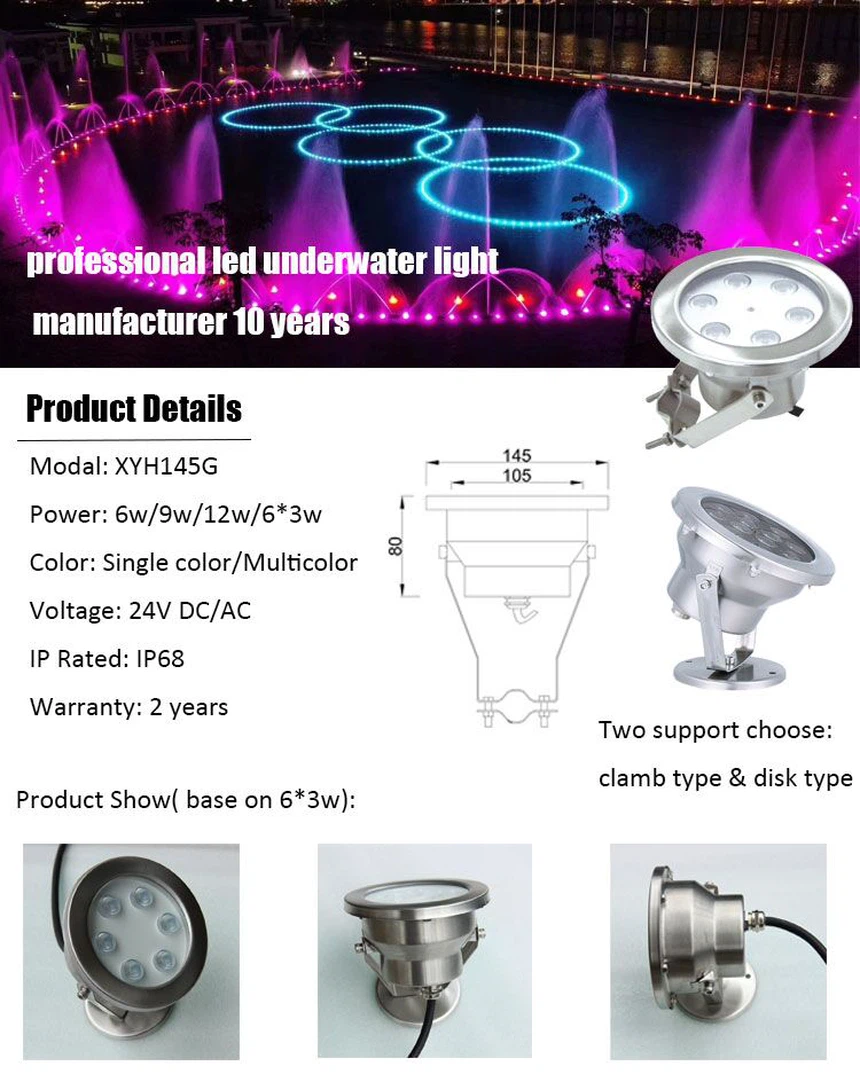

Model	Rated Power	Voltage	Dimension
XYH145G-6*1W	6W	AC/DC12/24V, AC220V	Φ145*145mm
XYH145G-9*1W	9W
XYH145G-12*1W	12W	AC/DC24V, AC220V
XYH145G-6*2W	12W
XYH145G-4*3W	12W
XYH145G-6*3W	18W
XYH145G-9*3W	18W
XYH145G-12*2W	24W

Underwater pool lights are lights designed for use in underwater environments to illuminate scenes of underwater activities such as diving, swimming, fishing, swimming pools, ponds, aquariums, or other bodies of water. They are usually made of corrosion-resistant, waterproof, rust-proof, high-brightness, long-life, water-resistant materials, and sealed to prevent water from entering the lamp and damaging electrical components.

There are several types of underwater fountain lights, including incandescent, LED and fiber optic lights. LED lights are the most energy-efficient and long-lasting option, while fiber optic lights are often used for decorative purposes. The color and intensity of the light can be controlled, and some underwater lights also have functions such as color changing and remote control.

Generally, we use 304/316 stainless steel, LED lamp beads, Epistar/Cree chips, and professional waterproof cables to produce led underwater lights.

The LED pool light has bright colors, high color saturation, strong waterproof performance, IP68 rating, and you can use it underwater. It can be used for decoration in outdoor landscapes such as fountains, pools, swimming pools, waterfalls, squares, gardens, and garden landscapes.

Q:How to install underwater lights safely?

A:First: First of all, for the selection of lamps, pay attention to the waterproof, power supply voltage, and power consumption of a single lamp;

Second: Calculate the wire diameter of the cable: Generally, underwater lights use low-voltage safety voltage, which involves low-voltage and high-current power supply, which will affect the voltage drop of the line. You must first calculate the voltage drop at the end of each line and reserve it in advance. redundancy;

Third: The isolation transformer and leakage switch for the power supply of the underwater light must be arranged outside of Zone 2 to avoid electric shock accidents;

Fourth: Whether it is surface mounted (bracket type underwater light) or installation (embedded underwater light), a 0.6-1 meter long cable should be reserved, so as to avoid the need to release the water in the pool when there is a problem with the lamp in the future. In this way, even if the lamp is broken, the lamp can be lifted from the water to the water surface to replace the wiring and make waterproof treatment;

Fifth: As for other wiring, the wiring joints are waterproof, and the general plumbers and decorators can basically handle it!

If you need know more,please contact us!
