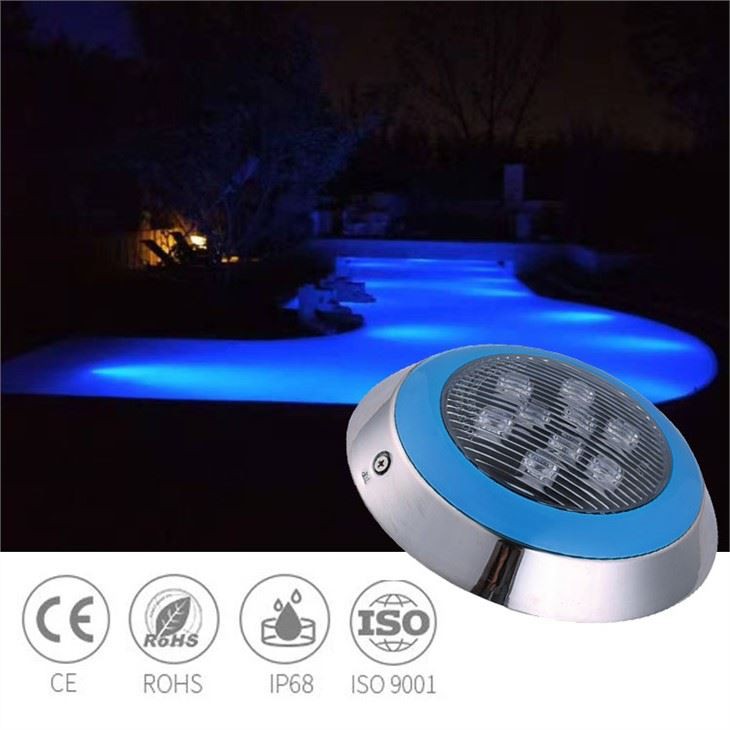

Production Introduction of the surface mount led pool light

WALL POOL LIGHT

1, Transparent resin protect the LED lamp from water ,at the same time , enhances the brightness of the LED.

2, Fully protected by resin , the control board is really waterproof and anti-corrosive.

3, The over-heat design can well protect the lamp from being burnt by high heat.

4, European standard waterproof cable is used and cable connection is fully protected by resin.

5, The LED's are driven by constant current driver which allows more stability.

6. Super brightness LEDs, save energy 80% than incandescent bulb.

7. No UV, low consumption, energy saving and environmental protecting.

8. 16 programs with full spectrum rich colors: RGB and mono color (warm white, white, cool white, red, blue, green, yellow) make our pool lights ideal replacements of the halogen bulb.

9. Different control ways for choosing makes your operation easier and convenient .

10. Certificate: CE, ROHS, IP68.

pool light led

Model	XYH LED swimming pool light
Power	6w/9w/12w/15w/18w
Voltage	AC/DC12V/24V
Dimension	23060/30086mm

1. Remove the bracket from the lamp.
2. Fix the bracket on the wall of the pool with screws
3. Screw the lamp to the bracket
4. Connect the wire to 12-24V converter (lamp cannot connect to 110V or 220V power directly. It is highly recommended to use an underwater cable gland)
5. 50cm depth of installation in water is recommended

Production workshop

XYH led lighting strictly abides by the corresponding process from design, raw material procurement, raw material storage, production, quality control, product factory testing and after-sales service, etc. There are 6 main production lines, with a monthly production capacity of more than 10,000 units.

Our factory

Application of the surface mount led pool light

It is very suitable for the decoration of water stages, fountains, ponds, aquariums, entertainment facilities and outdoor landscapes. A variety of rated power can illuminate all areas of light intensity you need. No pollution, environmental protection and energy saving.

led light
