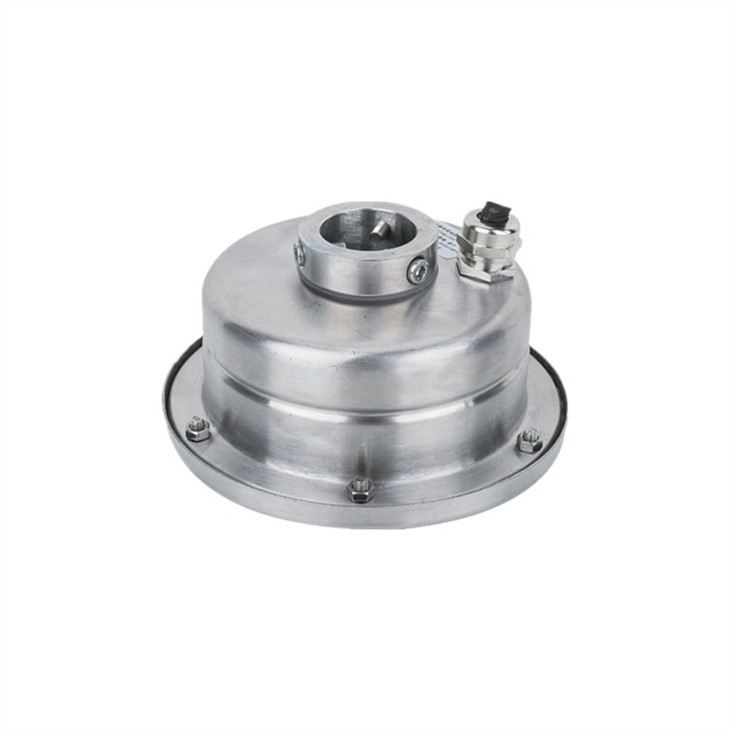

Dc12v DMX Tri Colour LED Swimming Pool Lighting

The shell and various accessories of the LED pool light use 304stainless steel to ensure that the bulb will not be corroded by water or damaged by heavy objects. The color lamps remotely controlled by the DMX control system can be used in multiple colors at the same time. Three colors or colors can be customized. Together with the jet of water from the fountain nozzle, the scene atmosphere will be pushed to the highest point and people's enthusiasm will be aroused. We can use AC/DC 12V/24V or AC220V voltage, more choices and safer. It can be used in swimming pools, fountains, waterfalls, gardens, water stages, garden landscapes and other outdoor underwater places.

Physical Dimensions & Specifications:

Product Model: XYH145GK

Wattage: 6W/9W/18W/27W

Beam angle: 30 degree as standard, 10/60/90/120 degree optional

LED Color: Red, Yellow, Blue, Green, White, Warm white, RGB

Material: Stainless Steel

IP Rating: IP68 (Waterproof)
LED Lifetime: 50000hrs

Voltage: AC/DC12/24 Volts, AC220Volts

Warranty: 2 years

Control method: Single color, Auto RGB color Change, RGB 4 wires color change(with remote),DMX512 control

Electric Parameters			Physical Parameter
Model	Rated Power	Voltage	Dimension	Centre Hole	Reference Weight
XYH145GK-6X1W	6W	AC/DC12/24V、AC220V	Φ145*80mm	32mm	1.2KG
XYH145GK-9X1W	9W
XYH145GK-6X3W	18W	AC/DC24V、AC220V
XYH145GK-9X3W	27W	AC/DC24V

We designed this lamp with four rated powers of 6w, 9w, 18w and 27w, which basically meets daily needs. It should be noted that the 27w led light can only use 24v low voltage.

This led light uses an anti-aging silicone sealing ring and a reasonable heat conduction system is designed in the sealing body. This is one of the few advantageous technologies in the industry. Based on the superiority of this technology, it has obtained a number of related patents.

Application

Single color, auto RGB color change, RGB 4 wires color change (with remote) and DMX512 control have their own advantages and disadvantages. Choose the most suitable control method according to convenience and safety. In addition to the colors mentioned, different colors can be added according to your needs. Swimming pools, fountains, gardens, squares, garden landscapes are all very suitable.

We have maintained good cooperative relations with domestic and foreign customers, with guaranteed quality and good reputation.

Here are some certificates for your reference.

The standard of the beam angle design is 30 degrees, but there are also 10 degrees, 60 degrees, 90 degrees and 120 degrees are optional.

The international standards we have obtained include CE certification, RoHs certification and the international quality certification system ISO9001. At the same time, the waterproof level has also reached the IP68 level, which has made a great contribution to the stability and reliability of the company’s product quality.

8mm thick tempered glass is enough to resist heavy blows and water immersion.

50000 hours life, 2 years warranty, quality is guaranteed.
